Give you a cost-effective excavator at a preferential price!

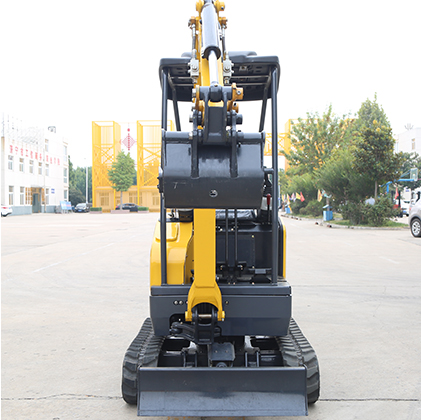

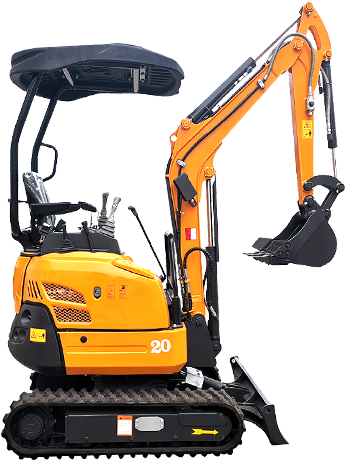

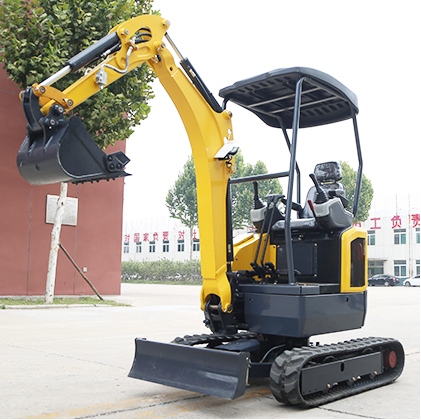

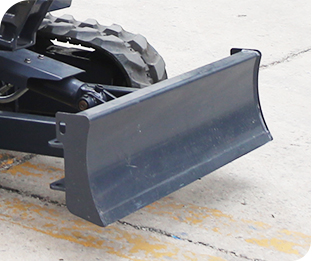

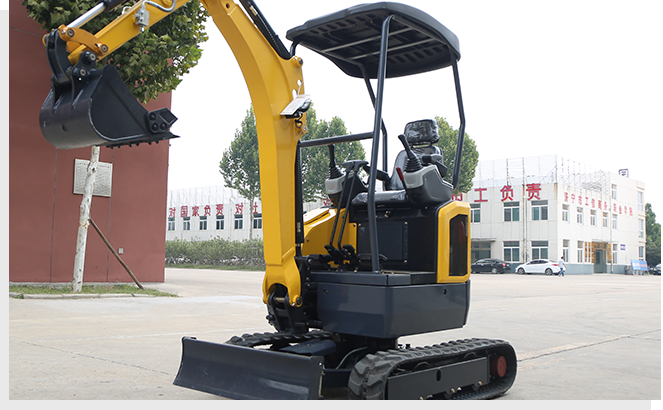

ZM23 2Ton Diesel Excavator is simple to operate, small and flexible, and convenient to transport (ordinary agricultural vehicles are enough). It can work in a narrow site. The standard bulldozer can level the site, backfill earthwork, and increase the stability of the whole machine.
The Changchai/popular science engine mounted on the ZM23 2Ton Diesel Excavator is characterized by strong power, low noise, low emissions, and low fuel consumption.

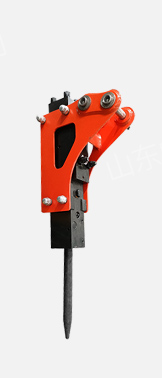

Small excavators can be equipped with hydraulic breaking hammers, wood grabs, scarifiers, grass rakers, augers and other operating devices, combined with their own rear rotation, retractable track structure and boom sideshift work, so that you can operate with ease in working conditions and difficult construction environments.

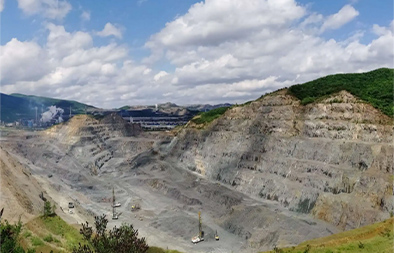

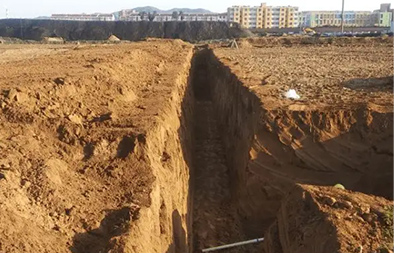

Planting fertilizer ditches, planting trees, weeding and digging cable ditches, tap water or sewage pipelines, natural gas pipelines, latrine reconstruction, terracing, indoor demolition, basement backfilling, landscaping, breaking of road and ground concrete, breaking of rocks on mountains, construction of tunnels and caves and water conservancy tunnels, various mines and shafts.

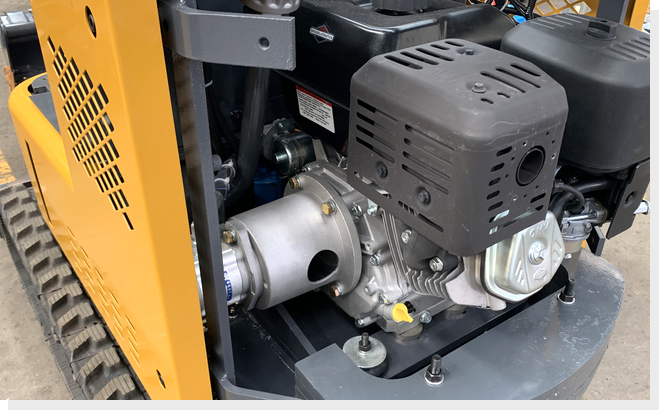

Small excavator has built-in exhaust fan and good heat dissipation system, so the machine does not generate heat and extends its service life. The external air circulation system of the engine heats the engine, reduces the intake air temperature of the engine, and the engine has strong power and strong service life.

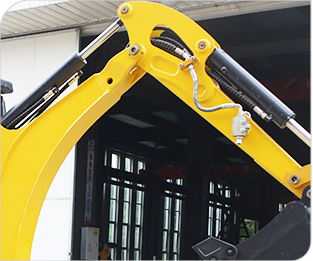

Small excavator is not only equipped with main pump, main valve, rotary motor and traveling motor to improve the stability of hydraulic system, but also equipped with return oil filter as standard. The excavator traveling motor is equipped with a standard oil drain pipe to prevent the internal pressure of the motor from being too high and the temperature from being too low, thus improving the service life.

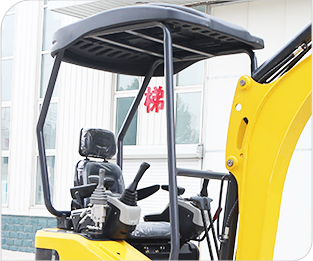

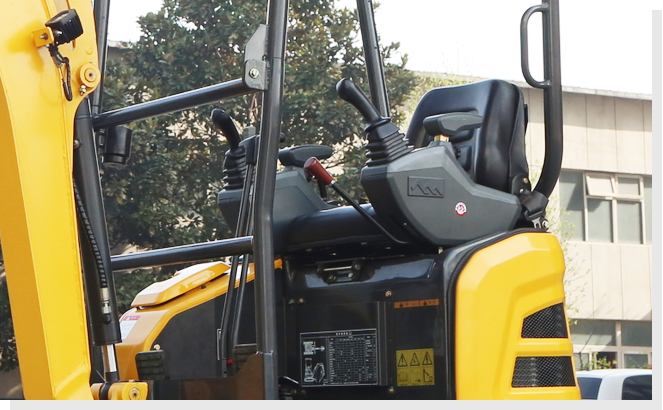

The operating control lever of small excavator is simple and easy to operate, and the boom and travel are operated separately; One key start, output power can be adjusted at will, easy to use.
The small excavator uses comfortable seats to complete the work comfortably and improve the work efficiency during long working hours. The thickened counterweight ensures the digging force of the machine and the smooth operation of the whole machine.

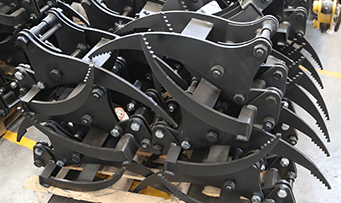

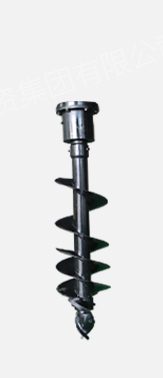

ZM23 2Ton Diesel Excavator is equipped with bucket, wood grab, breaking hammer, auger, mechanical rake and other accessories
Weight(KG) | 1800 |
Transportation length | 2360 |
Wooden box length A | 3560 |
Total width B | 990/1330 |
Total height C | 2405 |
Turntable width D | 996 |
Total width of chassis F | 990 |
Track width G | 230 |
Track gauge H | 1230 |
Platform ground clearance I | 760/1070 |
Minimum ground clearance J | 435 |
Maximum excavation height A | 3535 |
Maximum Dumping Height B | 2445 |
Maximum excavation depth C | 2270 |
Maximum vertical excavation depth D | 1910 |
Maximum digging radius E | 3910 |
minimum radius F | 1600 |
Standard engine brand | Kubota902 |
emission standard | EPA/CARB |
Engine power(KW) | 11.8kw/2300rpm |
horsepower(HP) | 16 |
Telescopic side swing | Side swing+telescopic |
Standard excavator bucket(mm) | 500 |
bucket capacity(m3) | 0.04 |
pilothouse | 4500 |
air-conditioning | 2500 |
operating mode | guide |
Optional engine | Xinchai3B11 |
weight(KG) | 665 |
Transportation length | 2600 |
Length of wooden box A | 2800 |
Total width B | 720 |
Total height C | 2000 |
Turntable width D | 700 |
Total chassis width E | 720 |
track width F | 150 |
Track width G | 860 |
Track gauge H | 550 |
Platform ground clearance I | 350 |
Minimum ground clearance J | 100 |
Maximum excavation height A | 2460 |
Maximum Dumping Height B | 1730 |
Optional engine | Changchai/Kepu/Bailitong/Lithium Battery/Electric Motor |
Maximum excavation depth C | 900 |
Maximum vertical excavation depth D | 340 |
Maximum digging radius E | 2490 |
minimum radius F | 1400 |
Standard engine brand | EUROP192f |
emission standard | countryⅡ |
Engine power(KW) | 8kw/3600rpm |
horsepower(HF) | 11 |
Telescopic side swing | - |
Standard excavator bucket(mm) | 300 |
bucket capacity(m3) | 0.02 |
pilothouse | - |
air-conditioning | - |
operating mode | machinery |
weight(KG) | 790 |
Transportation length | 2200 |
Length of wooden box A | 2800 |
Total width B | 925 |
Total height C | 2000/2175 |
Turntable width D | 805 |
Total chassis width E | 925 |
track width F | 180 |
Track width G | 906 |
Track gauge H | 742 |
Platform ground clearance I | 370 |
Minimum ground clearance J | 127 |
Maximum excavation height A | 2500 |
Maximum Dumping Height B | 1700 |
Optional engine | Changchai/Kepu/Bailitong/Lithium Battery/Electric Motor |
Maximum excavation depth C | 1580 |
Maximum vertical excavation depth D | 1200 |
Maximum digging radius E | 2900 |
minimum radius F | 1450 |
Standard engine brand | EUROP 192f |
emission standard | countryⅡ |
Engine power(KW) | 8kw/3600rpm |
horsepower(HF) | 11 |
Telescopic side swing | Can be added |
Standard excavator bucket(mm) | 400 |
bucket capacity(m3) | 0.025 |
pilothouse | 3500 |
air-conditioning | 2000 |
operating mode | machinery |
weight(KG) | 1500 |
Transportation length | 2350 |
Length of wooden box A | 2890 |
Total width B | 1100 |
Total height C | 2240 |
Turntable width D | 990 |
Total chassis width E | 1100 |
track width F | 180 |
Track width G | 1082 |
Track gauge H | 895 |
Platform ground clearance I | 400 |
Minimum ground clearance J | 140 |
Maximum excavation height A | 2690 |
Maximum Dumping Height B | 1780 |
Optional engine | - |
Maximum excavation depth C | 1715 |
Maximum vertical excavation depth D | 1585 |
Maximum digging radius E | 3150 |
minimum radius F | 1587 |
Standard engine brand | KubotaD722 |
emission standard | National IV/American IV/European V |
Engine power (KW) | 10.2kw/2500rpm |
horsepower (HF) | 15 |
Telescopic side swing | Side sway |
Standard excavator bucket(mm) | 400 |
bucket capacity(m3) | 0.023 |
pilothouse | 4000 |
air-conditioning | 2000 |
operating mode | guide |
Please consult customer service for more product configurations of small excavators

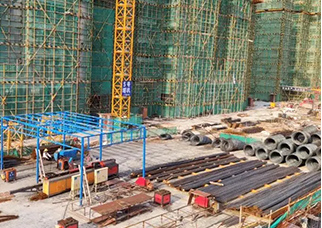

Variety of products · Used in orchards, engineering buildings and other occasions · Convenient replacement of accessories · Satisfactory service

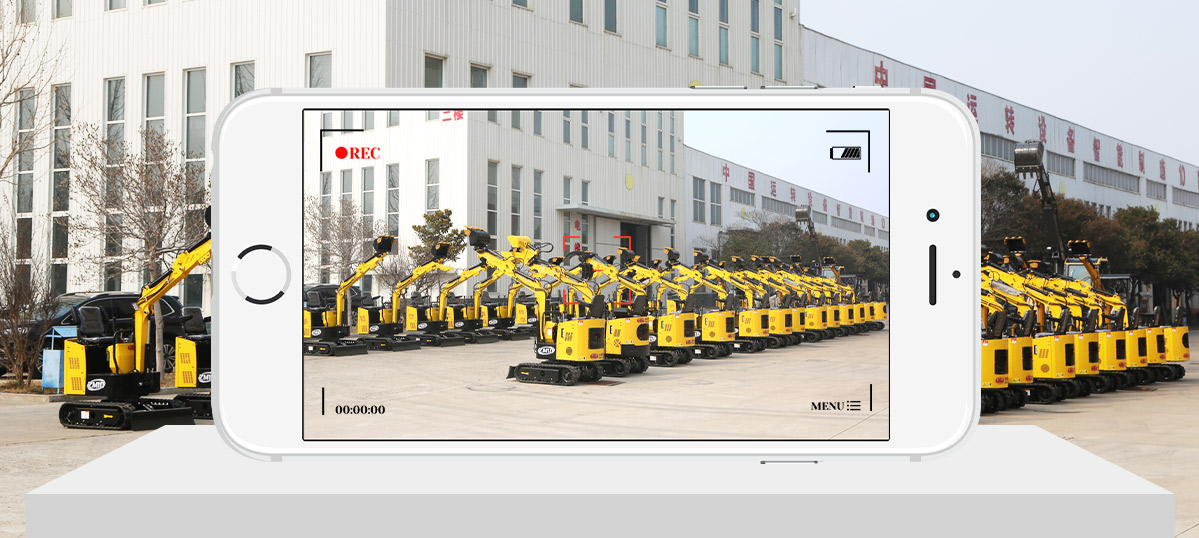

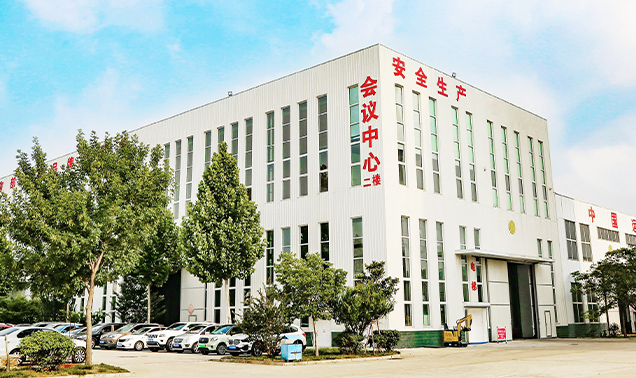

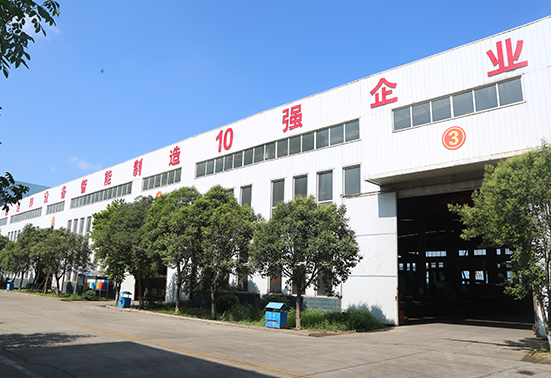

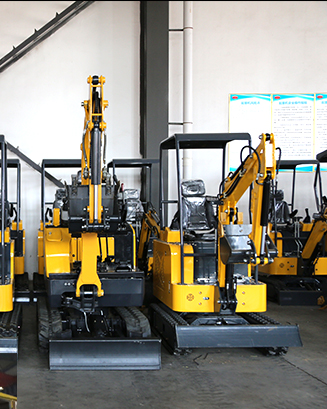

Physical production factory · Covering an area of 39000 ㎡ · Adequate supply · Timely delivery · Quality control · Dedicated service
