RAMMER
SCRAPER BUCKET
RAKE
HYDRAULIC BREAKING HAMMER
AUGER
POWERFUL/LOW FUEL CONSUMPTION/LONG SERVICE LIFE

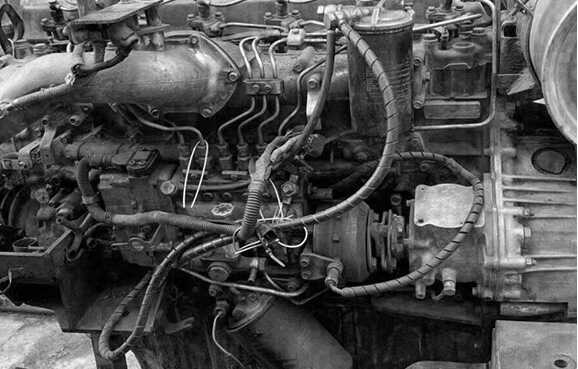

POOR QUALITY/HIGH FUEL CONSUMPTION/SHORT SERVICE LIFE/NO GUARANTEE
SUITABLE FOR MULTIPLE ENVIRONMENTS AND EASY HANDLING
EASY TO WEAR, HIGH MAINTENANCE COST, WASTE OF TIME

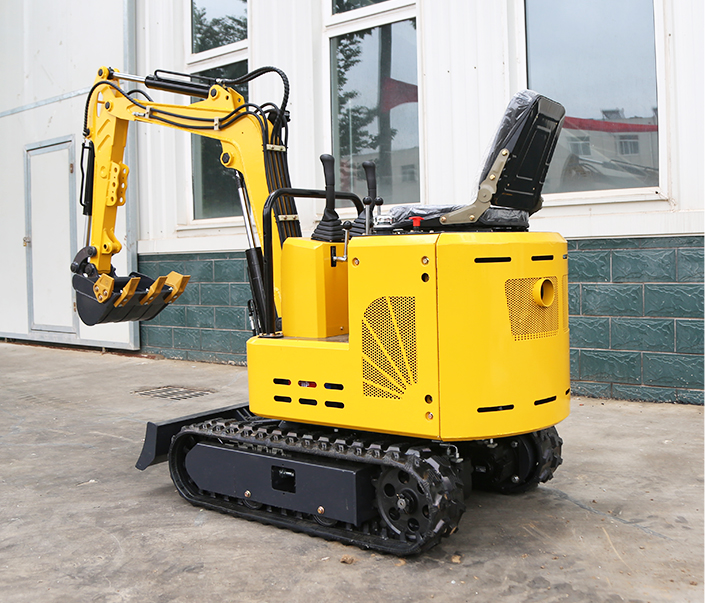

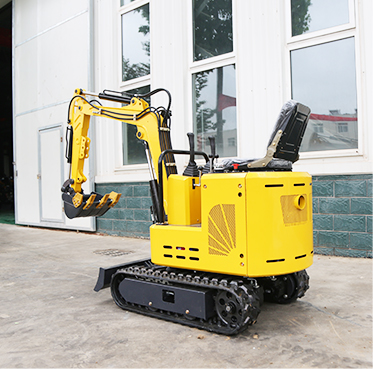

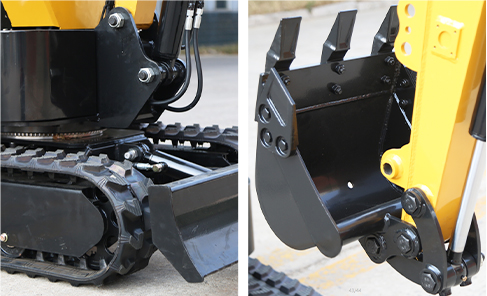

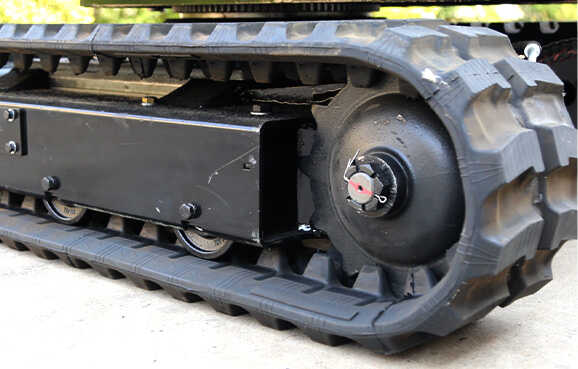

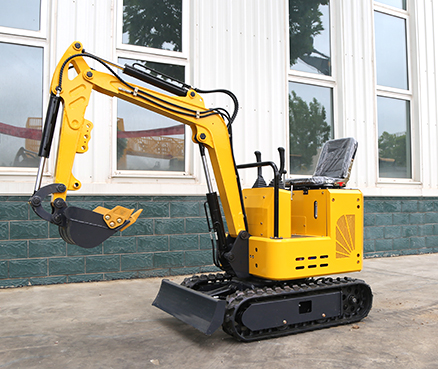

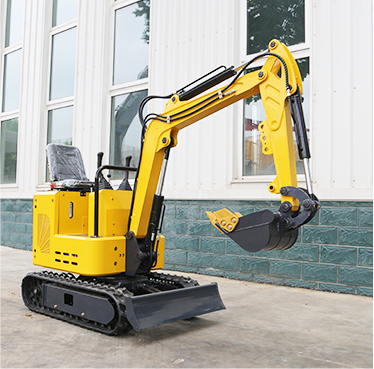

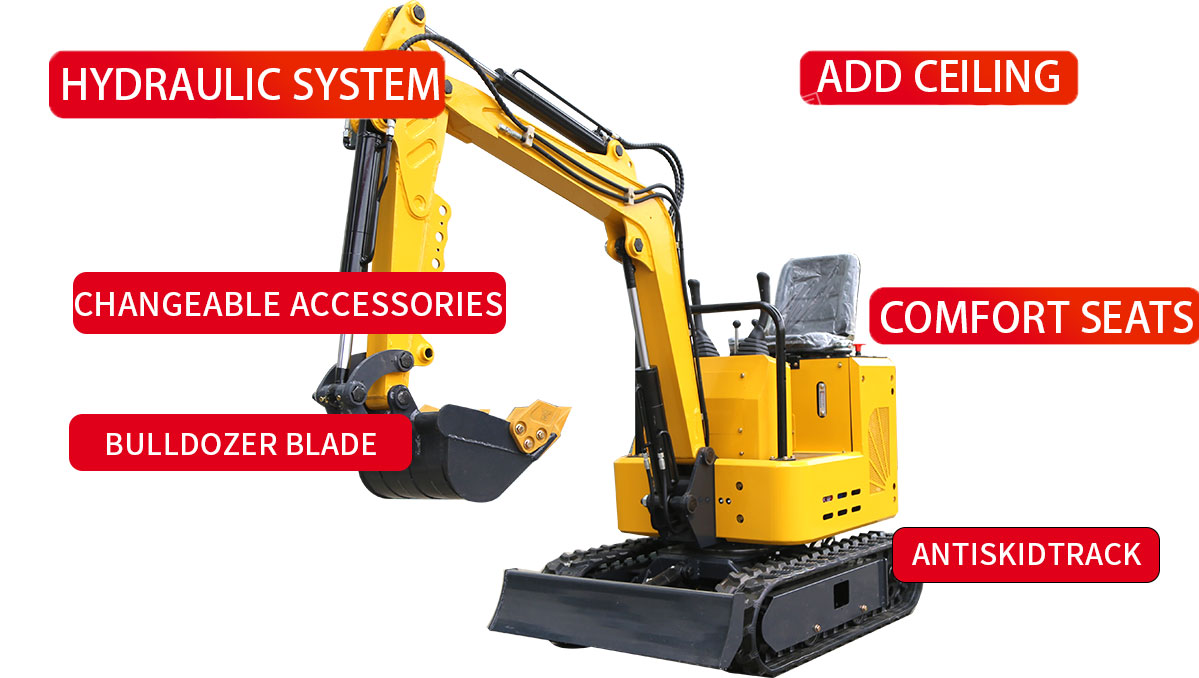

ZM12 1.2TON COMPACT EXCAVATOR operation control lever is simple and easy to operate, boom and travel are operated separately, dual hydraulic travel motor, imported brand, quality assured, and driving stability.

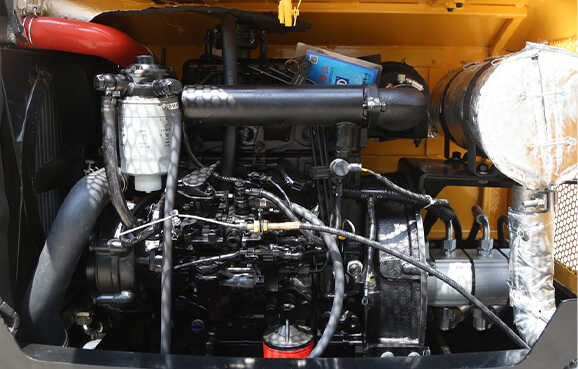

EQUIPPED WITH BRAND ENGINE WITH SUFFICIENT HORSEPOWER AND LOW FUEL CONSUMPTION
"HIGH POWER/LOW FUEL CONSUMPTION/SMOOTH OPERATION/LOW NOISE/COMFORTABLE OPERATION"

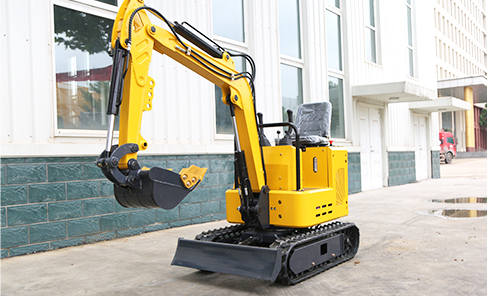

ZM12 1.2TON COMPACT EXCAVATOR works stably and is suitable for construction, bridges, railways, urban roads, digging fertilizer ditches, planting trees, weeding, digging ditches, deep soil digging in vegetable greenhouses and other operations. It is characterized by strong power, low noise, low emissions, low fuel consumption, etc.
BUILDING CONSTRUCTION

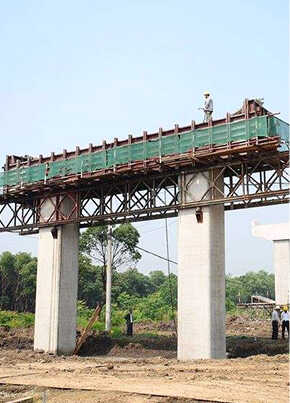

BRIDGE CONSTRUCTION

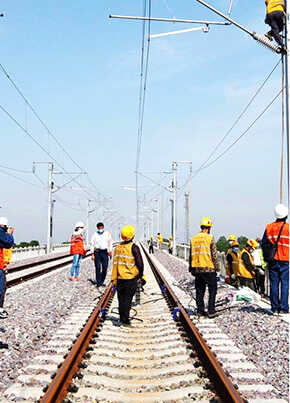

RAILWAY CONSTRUCTION
URBAN RD
| WEIGHT (KG) | 790 | MAXIMUM EXCAVATION DEPTH C | 1580 |
| TRANSPORTATION LENGTH | 2200 | MAXIMUM VERTICAL EXCAVATION DEPTH D | 1200 |
| WOODEN BOX LENGTH A | 2800 | MAXIMUM EXCAVATION RADIUS E | 2900 |
| TOTAL WIDTH B | 925 | MINIMUM TURNING RADIUS F | 1450 |
TOTAL HEIGHT C |
2000/2175 | STANDARD ENGINE BRAND | YUPU 192F |
| TURNTABLE WIDTH D | 805 | EMISSION STANDARD | COUNTRY II |
| TOTAL CHASSIS WIDTH E | 925 | ENGINE POWER (KW) | 8kw/3600Rpm |
| TRACK WIDTH F | 180 | HORSEPOWER (HF) | 11 |
| TRACK WIDTH G | 906 | TELESCOPIC SIDE SWING | CAN BE ADDED |
| TRACK GAUGE H | 742 | STANDARD EXCAVATOR BUCKET (MM) | 400 |
| PLATFORM GROUND CLEARANCE I | 370 | BUCKET CAPACITY (M3) | 0.025 |
| MINIMUM GROUND CLEARANCE J | 127 | DRIVER'S CAB | 3500 |
| MAXIMUM EXCAVATION HEIGHT A | 2500 | AIR-CONDITIONING | 2000 |
| MAXIMUM UNLOADING HEIGHT B | 1700 | OPERATION METHOD | MECHANICAL |
| OPTIONAL ENGINE | LAIDONG 385 | ||
PLEASE CONSULT CUSTOMER SERVICE FOR MORE PRODUCT CONFIGURATIONS OF SMALL EXCAVATORS

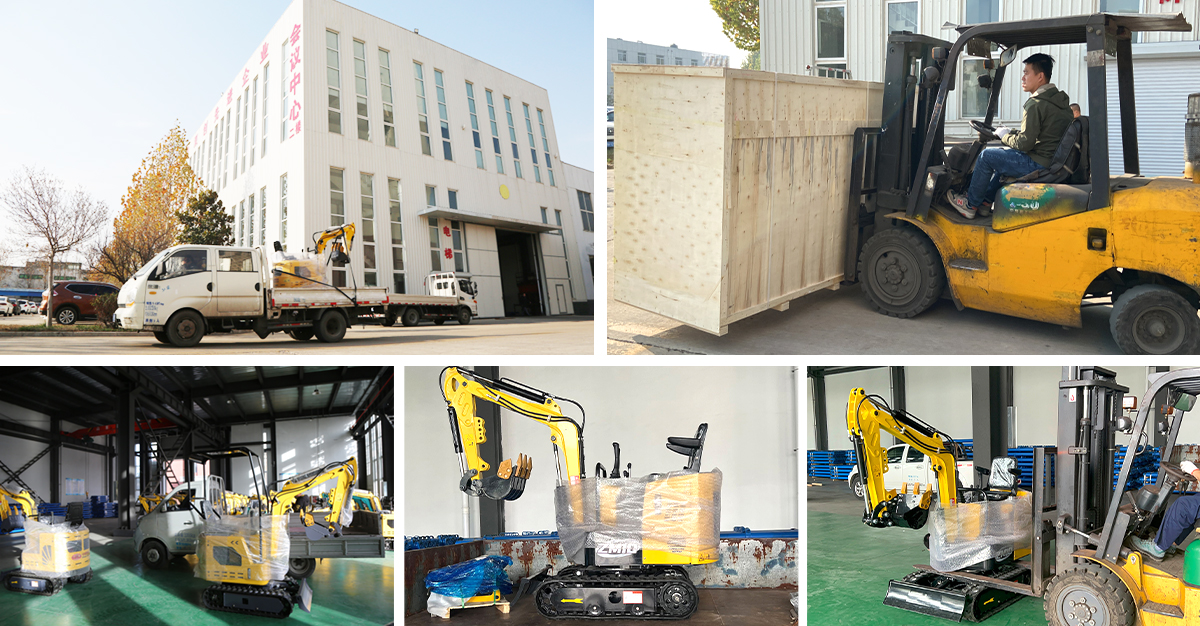

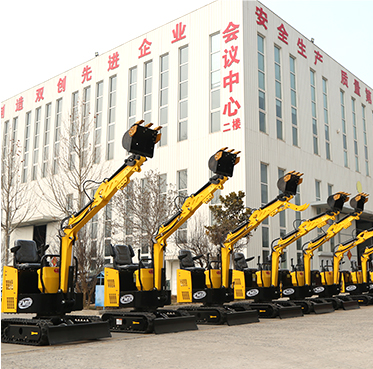

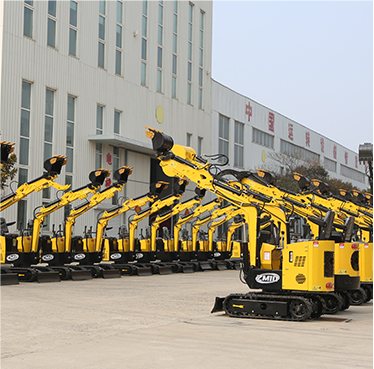

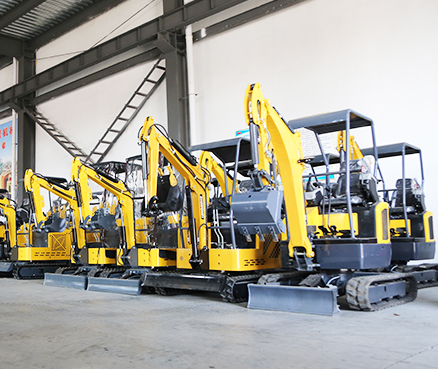

THE DIRECT SUPPLY OF GOODS IN THE PLANT AREA IS SUFFICIENT
INTELLIGENT WORKSHOP PROVIDES YOU WITH SATISFACTORY SERVICE
